EKX GTS X22 Controller

Name: EKX GTS X22 Controller
Brand: CITI ESCOOTER
Price: 169.00 USD
Availability: InStock

$169.00

Replacement controller for the EKX GTS X22 electric dirt bike.

EKX GTS X22 Controller Replacement

If your EKX GTS X22 controller has failed, shows controller-related fault symptoms, or the motor no longer responds correctly, this EKX GTS controller can help get your electric dirt bike back on the trail.

Category: ebike parts, ekx

Type: Unknown Type

Overview
FAQ

Overview

Tag: EKX X21 eBike | GTS X22; EKX X21 Max Electric Bike; EKX Ebike Accessories & Parts

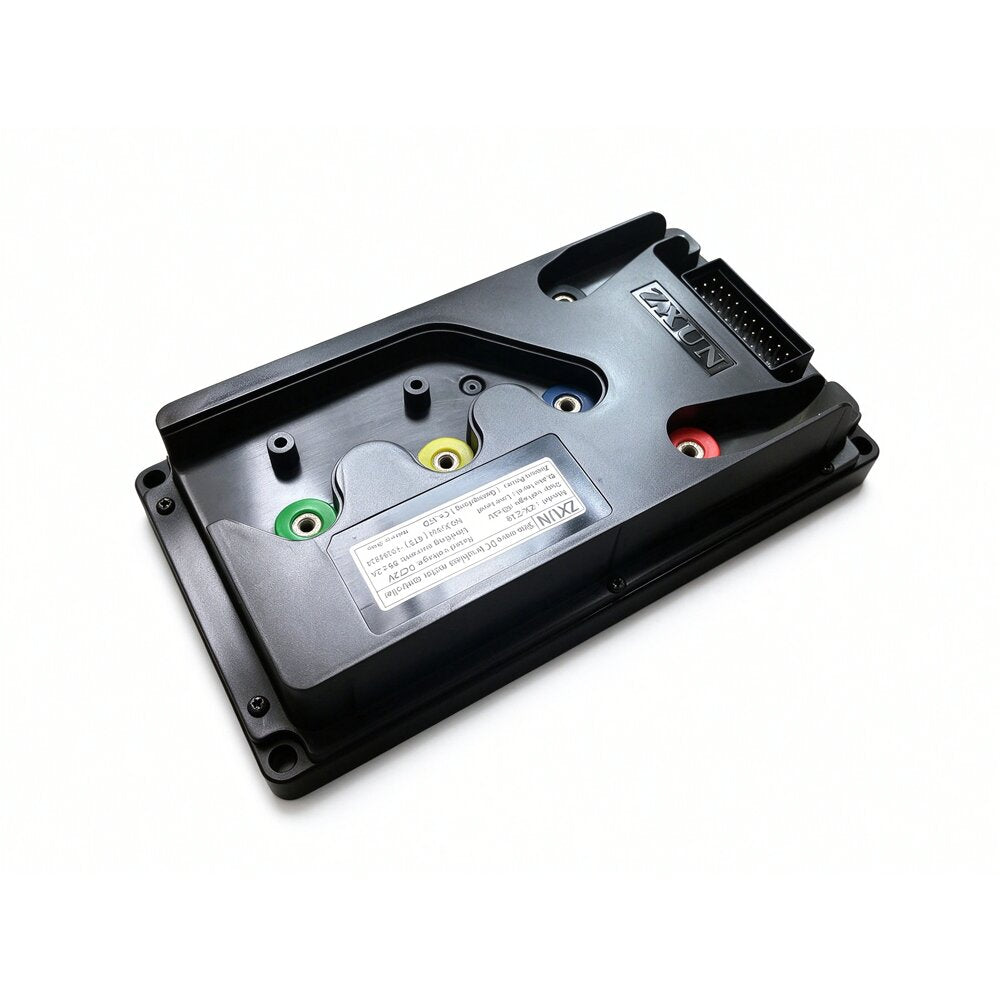

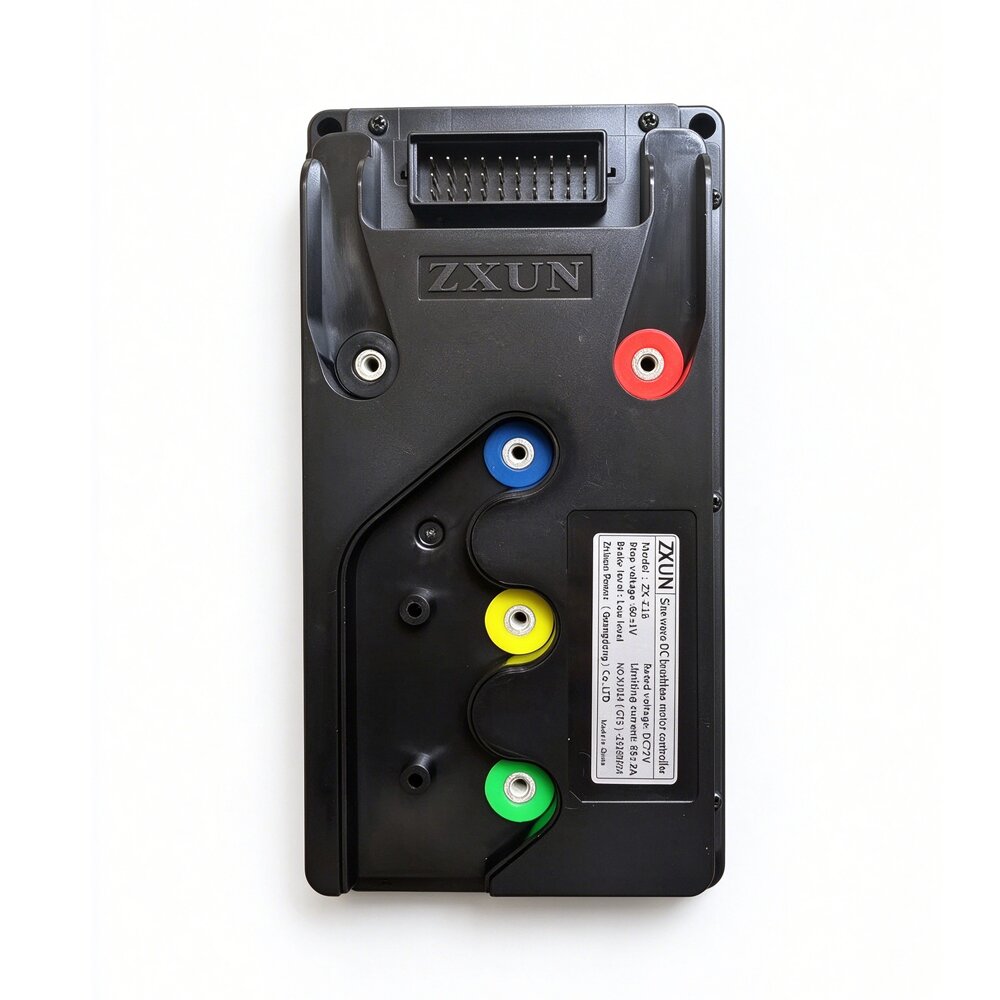

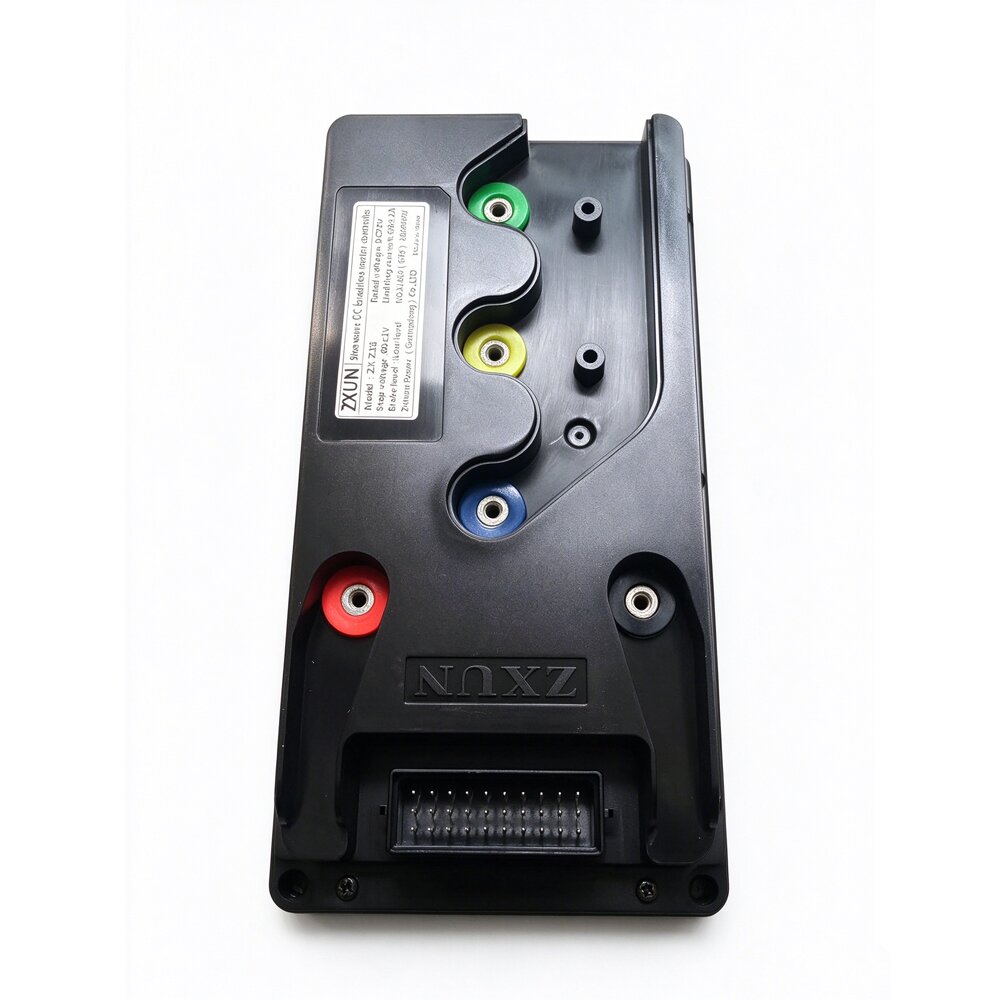

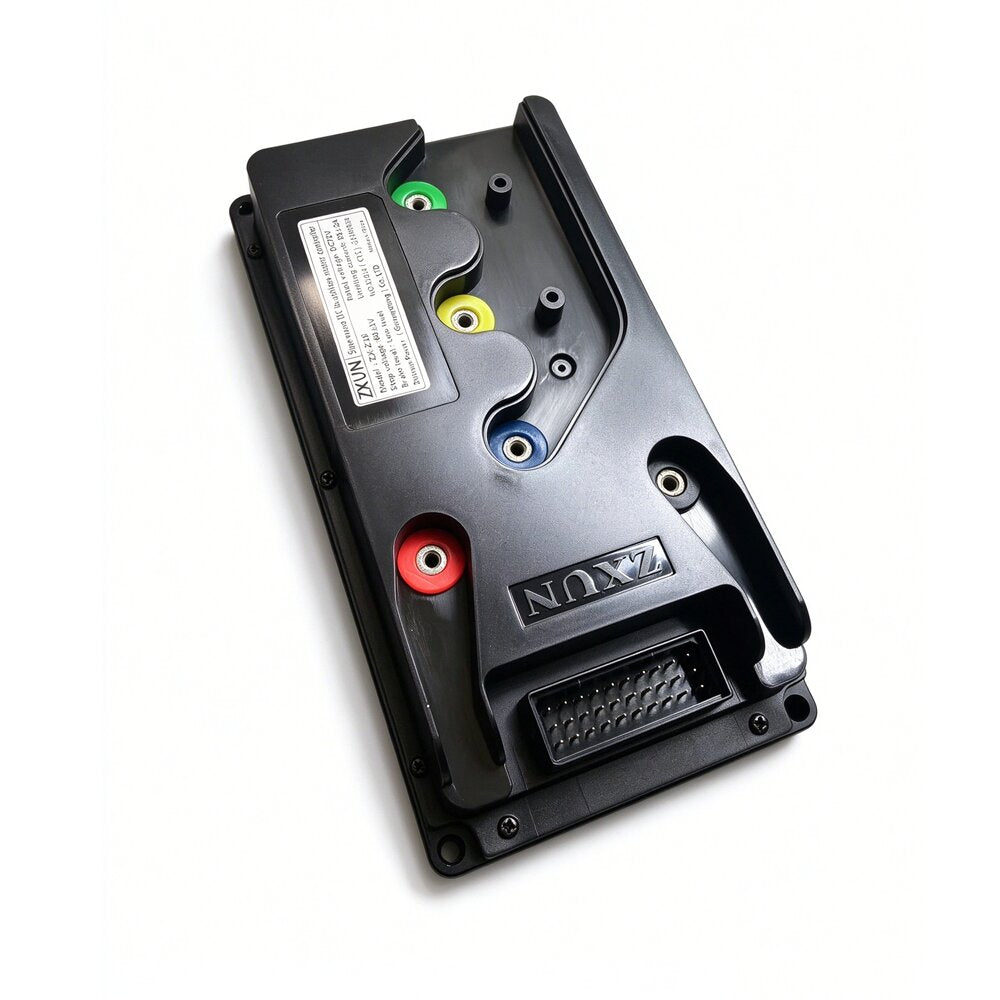

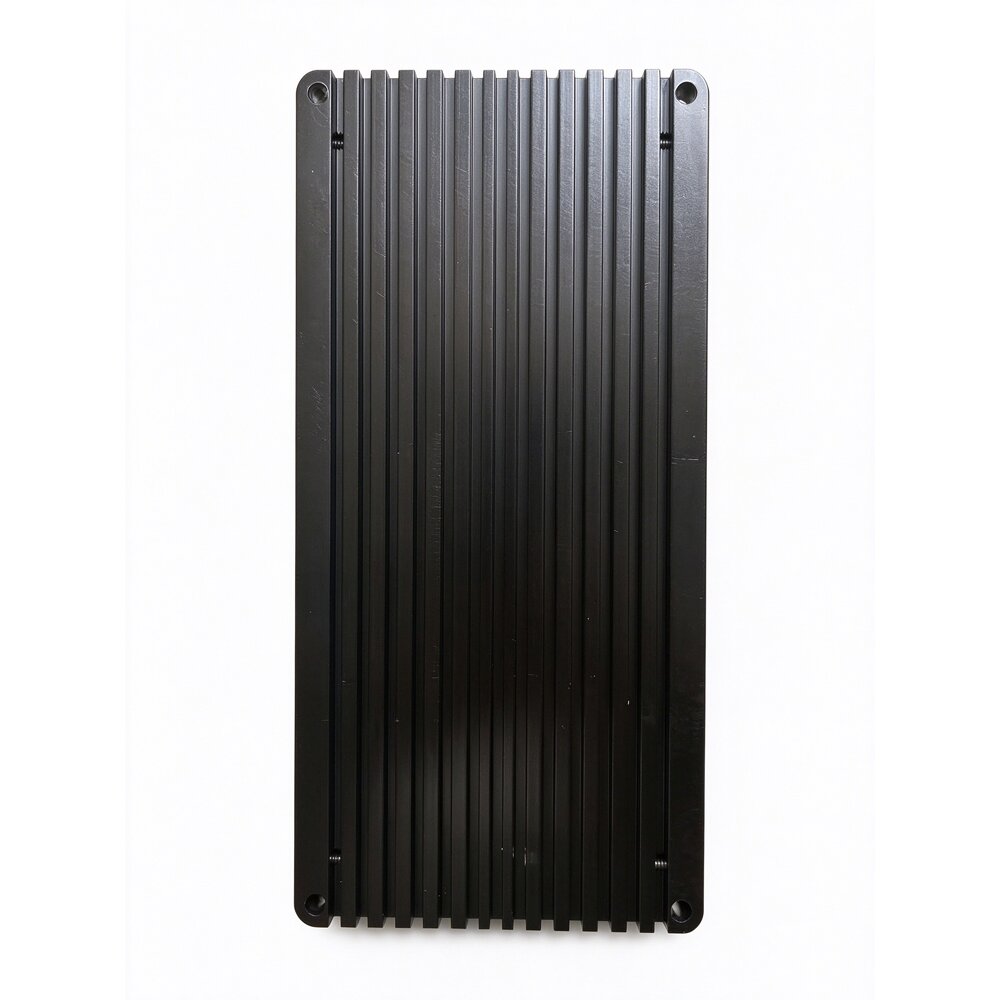

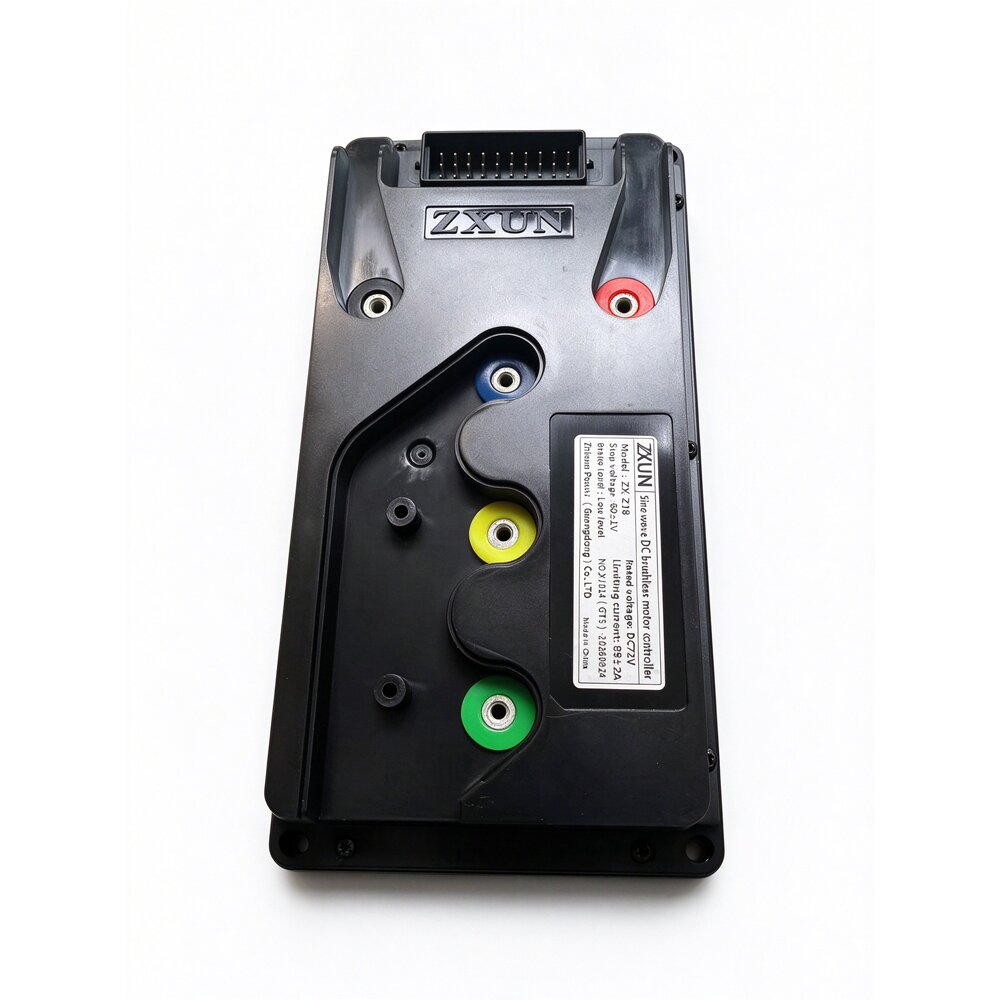

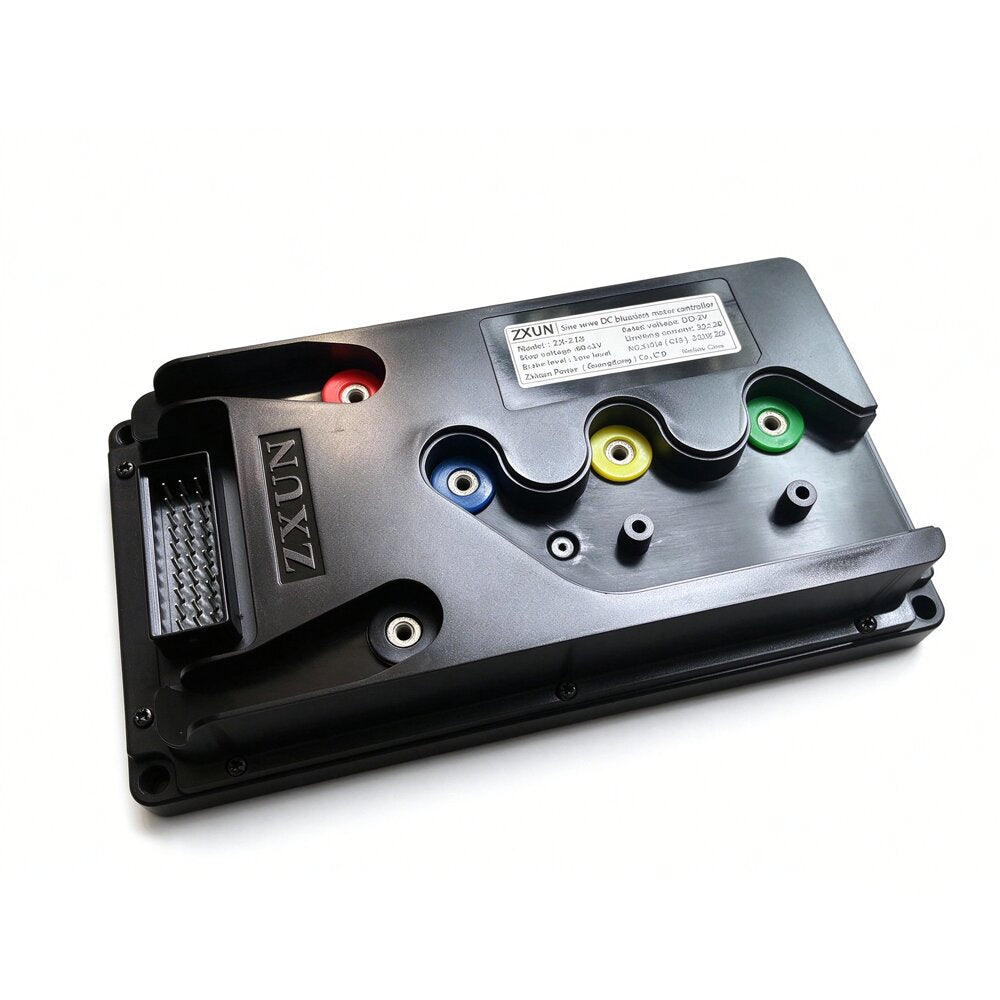

EKX GTS Controller

EKX GTS X22 controller replacement provides a practical solution when the original controller has failed or been damaged. EKX X22 eBike controller failures:

Motor does not run
Throttle does not respond
Sudden loss of power
Intermittent acceleration
Controller-related error codes
Motor starts and stops unexpectedly
Electrical components power on but the motor does not operate normally

GTS X22 uses a high-voltage 72V electrical system, so the replacement controller must match the bike's electrical configuration. EKX currently lists the EKX X22 with a 72V 30Ah battery and 6000W rated / 12000W peak motor system.

EKX GTS Controller Features

72V Controller System

Designed for the 72V electrical architecture used by the EKX GTS X22, providing controlled power delivery between the battery and motor.

Direct Replacement Design

Built as a replacement part for the original X22 controller. Matching the connector configuration is essential for proper installation.

Smooth Motor Control

The controller regulates electrical power from the battery to the motor, helping provide responsive throttle control and consistent acceleration.

Plug-and-Play Connector Matching

The most important compatibility factor is the connector and cable configuration. Always compare your original controller with the product photos before ordering.

Built for Off-Road Use

A replacement controller helps restore the power-control system of the X22 after electrical or controller failure, allowing riders to return to normal off-road operation.

EKX GTS X22 Controller Specifications

Specification	Details
Compatible Model	EKX GTS X22
Controller Type	Electric dirt bike motor controller
System Voltage	72V
Motor System	Brushless motor
Application	EKX GTS X22 replacement
Installation	Replacement for original controller
Compatibility	Match voltage, connectors and wiring before purchase

Installation Tips

Before installing an EKX GTS X22 replacement controller:

Turn off the bike and disconnect the battery.
Photograph the original controller and wiring before removal.
Compare the new controller with the original controller.
Check the voltage rating and controller label.
Match every connector and cable.
Inspect connectors for corrosion, loose pins, or burn marks.
Secure the controller and wiring away from moving parts.
Reconnect the battery only after all connections have been checked.

FAQ

EKX GTS X22 Controller FAQ

Is this controller compatible with the EKX GTS X22?

It is intended as a replacement for the EKX GTS X22 controller when the voltage, connectors, wiring configuration, and controller specifications match your original unit.

What voltage controller does the EKX GTS X22 use?

The current EKX GTS X22 uses a 72V electrical system with a 72V 30Ah battery.

Is the X22 controller the same as the X21 Max controller?

Do not assume they are interchangeable. The X21 Max uses a different 60V electrical system, while the GTS X22 uses 72V. Always order according to the exact bike model and controller configuration.

How do I know if my EKX X22 controller needs replacement?

Check the battery voltage, throttle, brake cutoff sensors, motor cable, connectors, and wiring first. If these components are functioning correctly and the controller shows physical damage or controller-related faults, replacement may be necessary.

Can I install an X22 controller myself?

An experienced DIY technician can replace the controller by matching the original wiring and connectors. Because the X22 uses a high-voltage electrical system, disconnect the battery before working on the wiring and seek professional assistance if you are unsure.

Does the controller include the motor?

No. A controller is an electronic power-control component. It does not include the X22 motor unless specifically stated in the product package.

Will this controller work with every EKX X22?

Not necessarily. Different production versions may use different connectors or controller configurations. Compare your original controller label and connectors with the replacement before purchasing.
