Ridstar Controller Features

Ridstar Q20 Controller Wiring Diagram

Typical wiring includes:

• Battery Connector
• Motor Phase Wires
• Hall Sensor Connector
• Display Connector
• Throttle Connector
• Brake Sensor Connectors
• PAS Sensor Connector
• Headlight Output

Before replacing a controller, photograph all wiring connections and compare connector pin layouts.

Ridstar Q20 Controller Error Codes

Is Your Ridstar Controller Actually Bad?

Before ordering a Ridstar Q20 controller, confirm the controller is the actual problem.

Signs of Controller Failure

Ridstar Q20 eBike Powers On But Won't Move

Possible causes:

• Failed Q20 controller
• Hall sensor issue
• Damaged motor cable

Burnt Smell Near Ridstar Controller

Possible causes:

• MOSFET failure
• Water damage
• Short circuit

Random Shutdowns

Possible causes:

• Overheating controller
• Loose battery connection
• Internal controller fault

Q20 Error Codes Keep Returning

If Ridstar ebike wiring, battery, throttle, and motor test good but errors remain, the Q20 controller may need replacement.

When Should You Replace a Ridstar Q20 Controller?

Replace the Ridstar controller if:

• ✓ Burnt electronics inside housing
• ✓ Water damage corrosion
• ✓ Persistent E07 or E10 errors
• ✓ No throttle response despite working display
• ✓ Motor and battery test good but bike will not drive
• ✓ Upgrading to a higher-performance controller

Can You Mod the Ridstar Q20 to Go Faster?

One of the most common searches is: Can you mod the Ridstar Q20 to go faster?

Yes. Popular Ridstar Q20 mods include:

• Higher-current controller
• Display speed unlock
• Upgraded battery
• Dual motor tuning
• Performance throttle

A properly modded Ridstar Q20 can improve acceleration and hill climbing. However, speed gains depend on motor limits, battery voltage, and controller current settings.

Searches commonly include:

• modded ridstar
• ridstar q20 modded
• ridstar q20 mods
• modded ridstar q20
• ridstar q20 1500w controller

Always verify motor and battery compatibility before upgrading.

Where to Buy Ridstar Q20 Controller & Parts

OEM Replacement Parts can be Purchase a direct-fit Ridstar Q20 controller replacement that matches your:

• Voltage
• Connector type
• Display version
• Motor configuration

Compatible YVY Parts

Many Ridstar and YVY electrical systems share compatible controllers, displays, throttles, and wiring harnesses.

Before Ordering: Confirm version label serial number matches.

Is a YVY controller compatible with Ridstar Q20?

Often yes. Many Ridstar and YVY models share similar electrical systems and connector standards.

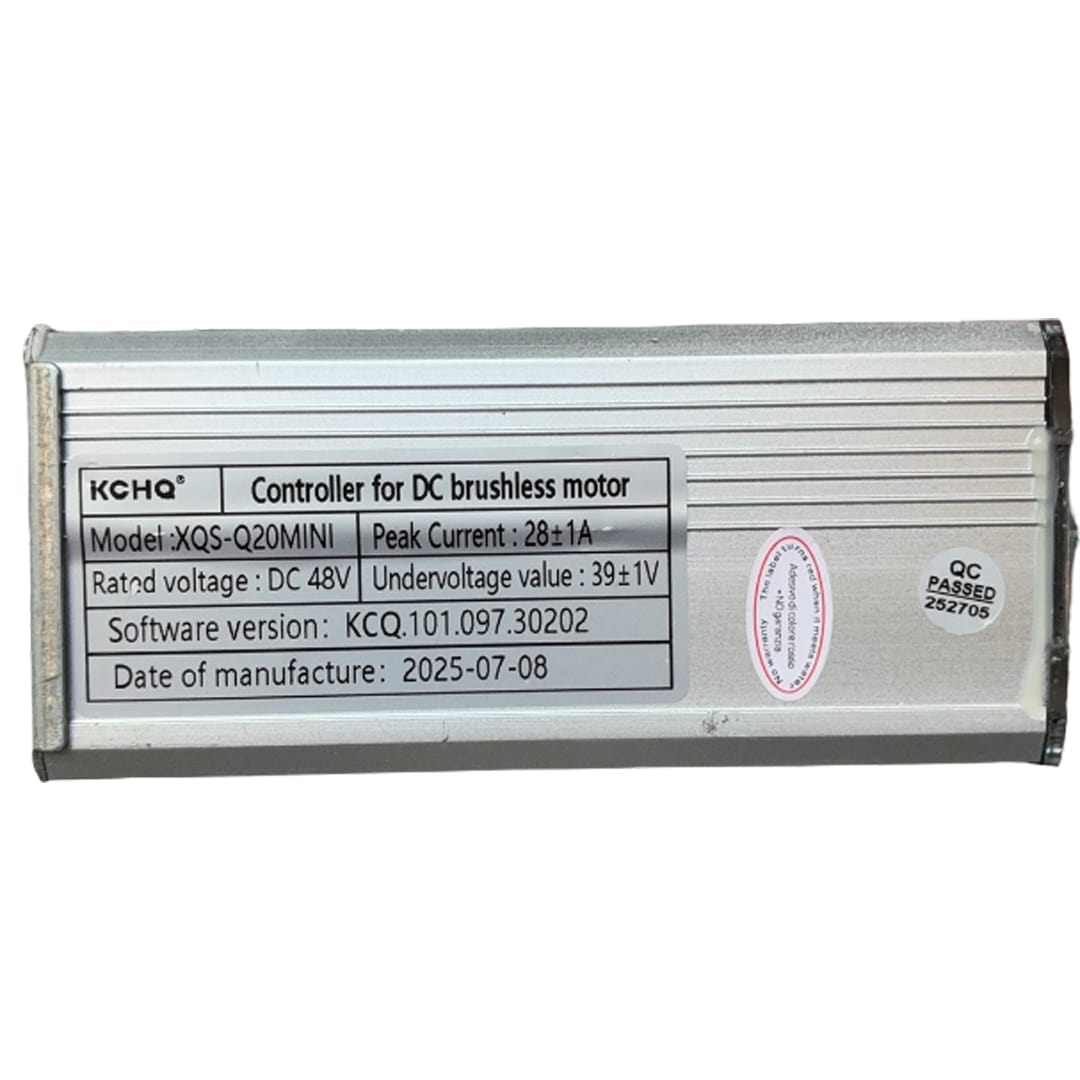

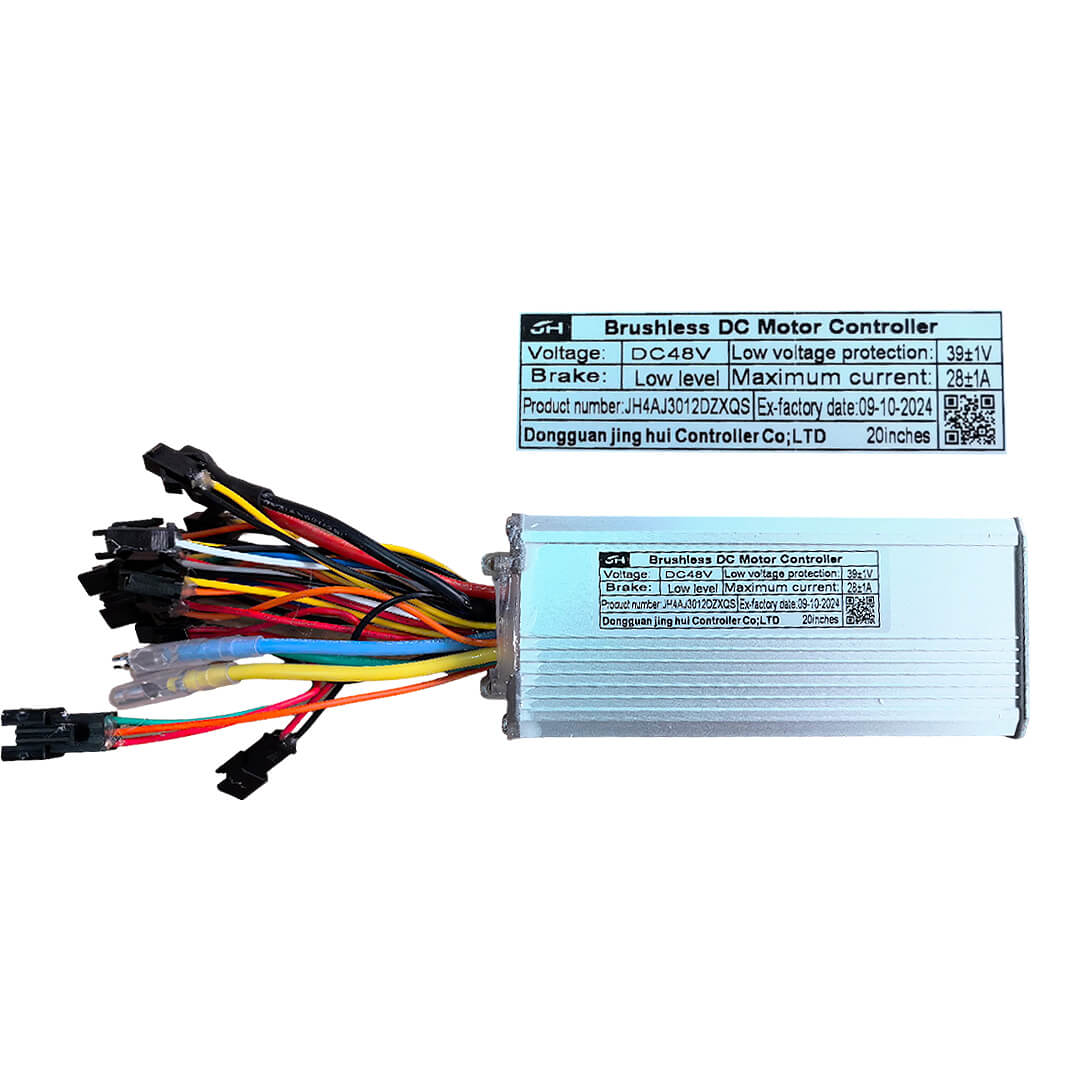

What controller does the Ridstar Q20 use?

Basic Q20 models use a 48V Ridstar motor controller ranging from 500W to 1500W (Ridstar Q20 Mini & Lite, Standard Ridstar Q20). and Dual motor Ridstar Q20 Pro uses 52V controller.

Why does my Ridstar Q20 turn on but not move?

Common causes include Ridstar controller failure, Hub motor cable damage, Hall sensor faults, or brake sensor issues.

Can a new controller make my Ridstar Q20 faster?

A higher-current controller can improve acceleration and power delivery if the battery and motor support it.

What is the Ridstar Q20 controller wiring diagram?

The system typically indicates battery, motor, Hall sensor, throttle, display, PAS, and brake sensor connections.

How long does a Ridstar controller last?

Typically 2–3 years depending on riding conditions, heat exposure, and load.

Can I upgrade to a 1500W controller?

Yes, many riders install a Ridstar Q20 1500W controller or higher-performance unit for improved acceleration.

When should I replace the Q20 controller?

Replace it when there is confirmed electronic failure, water damage, burnt components, or persistent controller-related error codes.
