EKX X21 Max Motor Controller – 60V 3000W Controller Replacement

EKX X21 Max Controller Replacement

Replace your damaged or faulty EKX X21 Max controller with a compatible 60V 3000W motor controller designed for EKX electric dirt bikes. This EKX X21 Max motor controller manages power delivery between the battery, throttle, display, and brushless hub motor, helping restore smooth acceleration, reliable motor response, and normal riding performance.

Category: ebike parts, ekx, motor, motor wheel, parts, x21

Type: Unknown Type

Overview
FAQ

Overview

Tag: EKX X21 eBike | X21 Motor replacement; EKX X21 Max Electric Bike; EKX Ebike Accessories & Parts

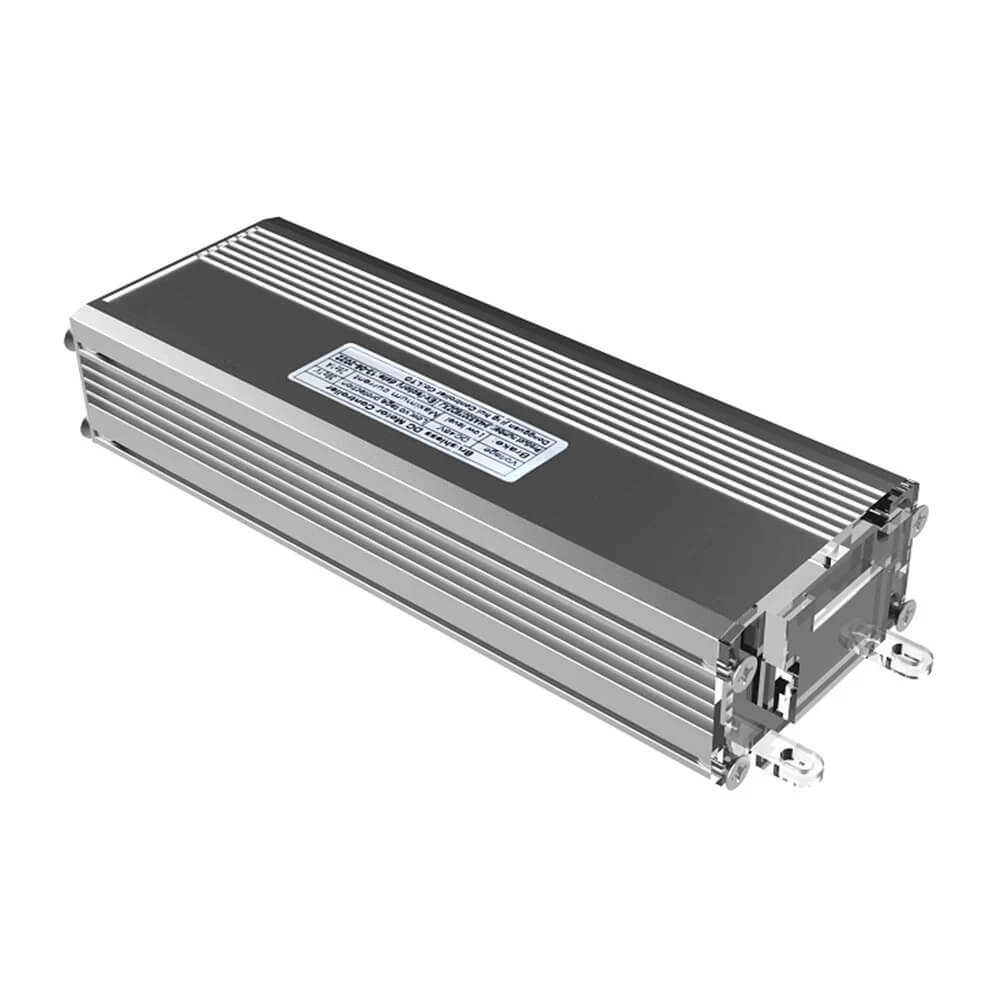

EKX X21 Controller

The EKX X21 Max controller is designed for the 60V X21 Max electrical system and is listed by EKX as a 3000W X21 Max controller. The official spare-parts specification lists the controller voltage as 48V/60V depending on model, with a maximum-current range of 28A–80A.

If your EKX X21 Max has lost motor power, developed inconsistent throttle response, or suffered controller damage, replacing the controller can restore the bike's electrical power-management system without replacing the complete motor or bike.

EKX X21 Max Controller Features

EKX X21 Max electric dirt bike
60V system for X21 Max applications
3000W controller specification
Supports high-current up to 80A motor operation
Controls motor power delivery and throttle response

EKX X21 vs. EKX X21 Max Controller

Do not automatically assume that an EKX X21 controller and X21 Max controller are interchangeable.

Model	Controller Specification	Electrical System
EKX X21	2000W	48V
EKX X21 Max	3000W	60V

EKX X21 Motor Controller Specifications

Specification	Details
Product Type	Electric Dirt Bike Motor Controller
Application	EKX X21 Max
Controller Rating	3000W
System Voltage	60V
Maximum Current	28A–80A
Motor Type	Brushless Motor
Function	Motor and power management
Replacement Part	EKX X21 Max Controller / Motherboard

When Should You Replace an EKX X21 Max Controller?

A controller may need replacement when troubleshooting confirms that the controller is damaged or no longer operating correctly.

Common symptoms can include:

Motor does not respond to the throttle
Bike powers on but the motor does not run
Sudden loss of motor power
Irregular or inconsistent acceleration
Controller overheating
Electrical or controller-related error codes
Visible controller damage
Damaged wiring or controller connectors
Replacement required after an electrical failure

Important: These symptoms can also be caused by the battery, throttle, display, wiring harness, motor, brake sensors, or connectors. Test the electrical system before replacing the controller.

EKX X20 e-Bike | EKX X21 | EKX X21 Max Ebike Parts

Recommended information to provide before purchase: EKX X21 or EKX X21 Max original controller version label

Order Your EKX X21 Max Controller Replacement

Keep your electric dirt bike running with a properly matched EKX X21 Max motor controller. Designed around the X21 Max's 60V electrical system and 3000W controller specification, this replacement part is suitable for repairing a faulty controller and restoring normal motor-control functionality.

Before ordering, verify your EKX model and connector configuration to ensure the replacement controller matches your bike.

FAQ

What controller does the EKX X21 use?

The standard EKX X21 controller is designed for the lower-voltage X21 electrical system. EKX lists the X21 with a 48V battery system and 2000W motor configuration, while the X21 Max uses the higher-voltage 60V system and 3000W controller.

Is the EKX X21 controller the same as the X21 Max controller?

No. Although the EKX X21 and X21 Max share a similar platform, their controller specifications are different.

EKX X21: 48V / 2000W controller
EKX X21 Max: 60V / 3000W controller

The X21 Max is essentially the higher-voltage, higher-power version of the X21. EKX describes the X21 Max as an upgraded version of the 2000W X21, with higher speed and performance.

Can I use an EKX X21 Max controller on an EKX X21?

Do not assume that the X21 Max 60V controller can be installed on a standard X21. The two models use different electrical-system voltages and controller power ratings. The X21 is a 48V/2000W configuration, while the X21 Max is a 60V/3000W configuration.

For a standard EKX X21, use the correct 48V X21 controller rather than the 60V X21 Max controller.

Is the EKX X21 a lower-voltage version of the X21 Max?

Yes. The EKX X21 is the lower-voltage, lower-power version of the X21 Max. The current EKX specifications identify the X21 as a 48V/2000W model, while the X21 Max is a 60V/3000W model.

This difference is important when ordering replacement electrical parts because the battery voltage, controller rating, wiring, and connectors need to match the specific bike.

What is the difference between the EKX X21 and X21 Max controllers?

Feature	EKX X21 Controller	EKX X21 Max Controller
Model	EKX X21	EKX X21 Max
Voltage	48V	60V
Controller Rating	2000W	3000W
Performance Level	Standard X21	Higher-performance X21 Max
Replacement Application	EKX X21	EKX X21 Max

EKX's official spare-parts listing specifically identifies the component as a 2000W X20/X21 controller and a separate 3000W X21 Max controller.

Does the EKX X21 controller fit the EKX X20?

EKX lists the controller/motherboard spare part for both X20 and X21, with the 2000W controller specification. However, connector and configuration differences can exist between versions, so confirm the controller connection-port type before ordering.

How can I order the correct EKX X21 controller?

Before ordering an EKX X21 controller replacement, confirm:

Your exact model — X21 or X21 Max
Battery voltage — 48V or 60V
Controller power rating
Connector and communication-port configuration
Existing controller label or part number

EKX specifically recommends providing the controller connection-port type when placing an order.

Where can I find EKX X21 replacement parts?

The EKX X21 is supported by a dedicated parts collection that includes the controller/motherboard, motor core, foot pedal and other X21 replacement parts.

Where can I find the EKX X21 user manual?

EKX provides model-specific user guides for the X21 and X21 Max. Always use the manual that matches your exact bike model and version when checking electrical components or performing maintenance.
