EKX X21 Max Motor

Name: EKX X21 Max Motor
Brand: CITI ESCOOTER
Price: 279.00 USD
Availability: InStock

$279.00

EKX X21 Motor Gear | Fix X21 Motor Failure

EKX X21 Max Motor Replacement

Replace the complete EKX X21 motor core and get your electric bike back on the road without rebuilding the internal planetary gears.

If your EKX X21 or EKX X21 Max has developed motor vibration, grinding noise, intermittent power loss, or the motor has stopped responding completely, replacing the complete motor core can be a practical alternative to rebuilding the internal planetary gears.

Or you simply don't want to spend hours opening the hub motor and rebuilding its internal components, an EKX X21 Motor Core Replacement provides a simpler repair option.

Category: ebike parts, ekx, motor, motor wheel, parts, x21

Type: Unknown Type

Overview
FAQ

Overview

Tag: EKX X21 eBike | X21 Motor replacement; EKX X21 Max Electric Bike; EKX Ebike Accessories & Parts

EKX X21 Motor Replacement

Fix Motor Failure Without Rebuilding Internal Gears

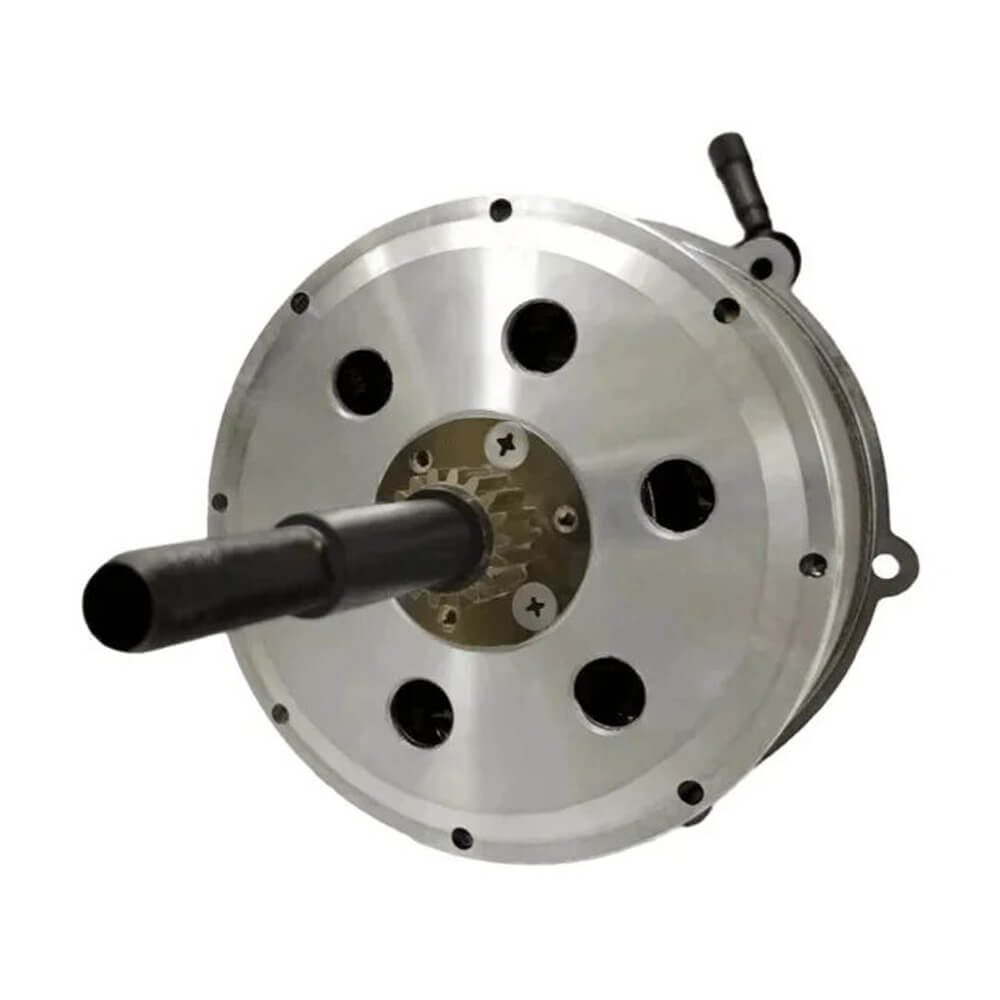

The EKX X21 Motor Core is a complete replacement motor assembly for compatible EKX X21 hub motors. Instead of tearing apart the motor, removing individual planetary gears and rebuilding the clutch assembly, you can replace the complete motor core assembly.

Important: Not every EKX X21 motor failure is caused by the gears. If the motor has electrical damage, burned windings, damaged Hall sensors, phase-wire problems, or controller issues, replacing the planetary gears alone will not solve the problem.

Common search terms include EKX X21 motor failure, EKX X21 Max motor not working, EKX X21 vibration, EKX X21 grinding noise, EKX X21 error 23 and EKX X21 error 24.

Why replace the EKX eBike motor?

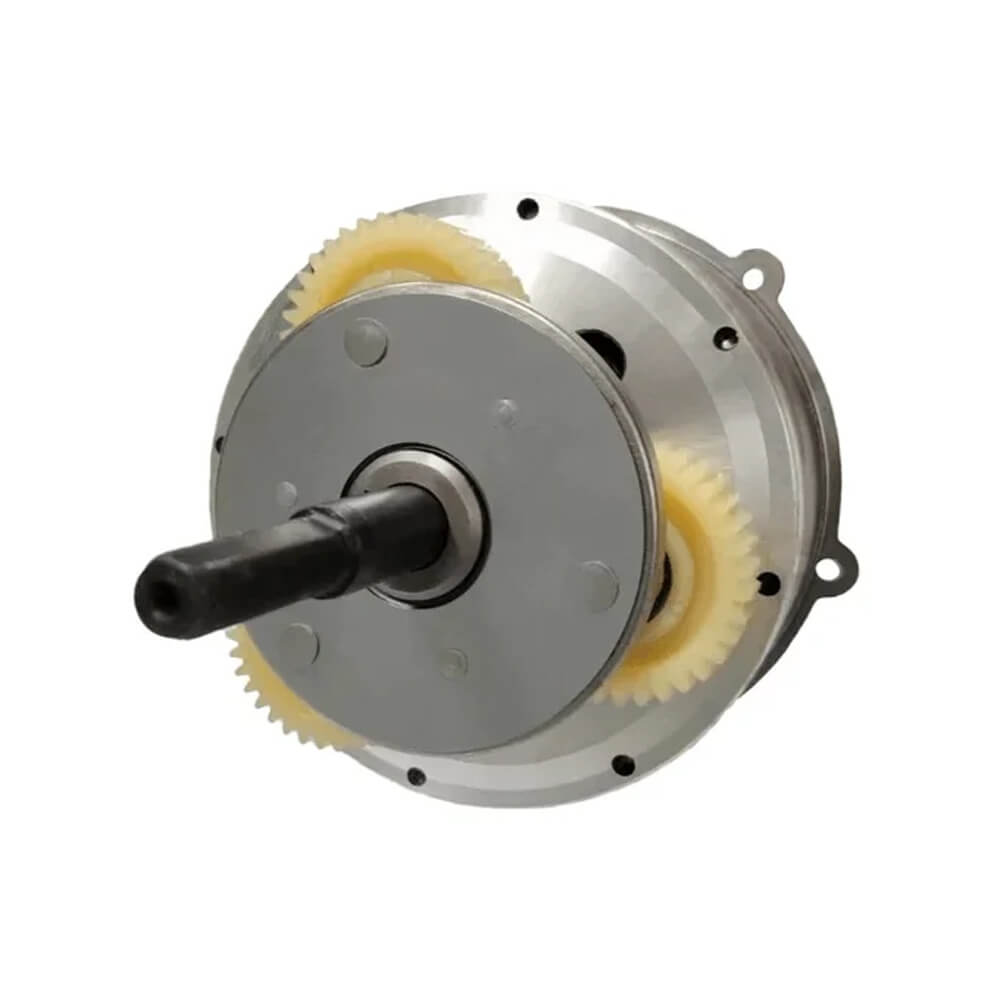

A damaged planetary gear can often be repaired by replacing the internal 36T nylon gear and clutch assembly. Replacing the complete motor core eliminates the need to rebuild the internal geared motor assembly and is the preferred option for many riders who want a new internal motor.

Replace the complete internal motor: Instead of rebuilding individual gears, install a replacement motor core assembly.
Keep your original wheel: The motor core is intended to replace the internal motor without replacing the complete spoked wheel assembly.
Less internal mechanical rebuilding: A practical solution for riders who do not want to dismantle planetary gears and clutch components.
Suitable for motor replacement repairs: Useful when the original motor assembly is mechanically damaged or replacement is preferred over rebuilding.

Does Your EKX X21 Have a Motor Gear Failure?

Before purchasing an EKX X21 Max motor gear, check of worn EKX motor gears:

Symptom	Possible Cause	Recommended Action
Motor makes a high-pitched whine but wheel does not turn	Damaged planetary gear or clutch	Inspect motor gear/clutch
Motor spins but rear wheel barely moves	Gear teeth worn or clutch slipping	Replace planetary gear assembly
Grinding or clicking from rear hub	Damaged/worn gear teeth	Open motor and inspect gears
Motor suddenly loses drive after heavy throttle	Internal gear/clutch damage possible	Stop riding and inspect motor
Rear wheel turns but motor slips under acceleration	Clutch or planetary gear problem	Inspect clutch and gears
Motor does not make any sound	Could be controller, Hall sensor, phase wiring or motor electrical failure	Diagnose electrical system first
Display shows motor/Hall/phase-related error	Electrical fault possible	Check wiring, connectors and motor sensors

FAQ

What is an EKX X21 motor core?

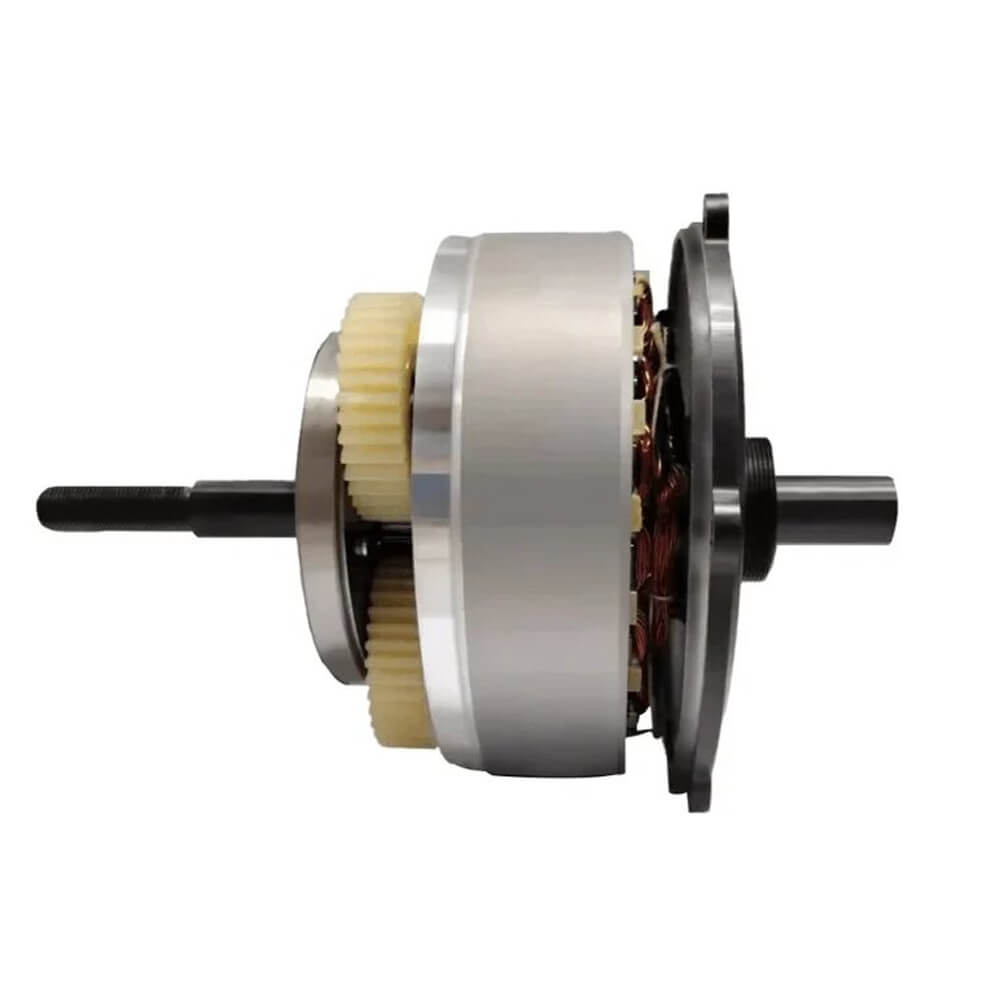

The motor core is the complete internal hub motor assembly that replaces the original motor inside the rear wheel while allowing the existing rim and spokes to remain in use on compatible EKX models.

Is the EKX X21 motor core compatible with X21 Max?

The UK official EKXBike store lists X21 Max as a selectable motor-core model. However, compatibility should always be confirmed with the original motor number and connector because different versions may require different replacement parts.

Should I replace the motor gear or the motor core?

Replace the motor gear when the failure is clearly limited to worn planetary gears or clutch components. Choose the motor core when the complete internal motor assembly is being replaced or when you prefer avoiding the detailed labor required to rebuild the geared hub motor.

Can error 23 or error 24 mean I need a new motor?

Possibly, but not always. Electrical faults involving phase wires, Hall sensors, motor connectors or the controller can also produce motor-related error codes. Inspect wiring and compatibility before replacing parts.

Does the motor core include the wheel?

No. The replacement is intended as the internal motor assembly rather than a complete spoked wheel, allowing the original wheel structure to be retained.

Do I need professional installation?

If you have experience servicing hub motors and rear wheel assemblies, installation is possible with the correct tools. Otherwise, professional e-bike service is recommended because correct mechanical assembly and electrical connection are essential for reliable operation.
